Tractor backhoe BK145

  • BK145

  • AIEMERY

  • 145cm

  • 10-35hp

Availability:
Quantity:

AIEMERY MINI BACKHOE BK145

BK145 mini backhoe is designed for universal small to medium tractors from 10 to 40hp category Ⅰ/Ⅱ linkage, The BK145 mini excavators have their own hydraulic tank and pump. It is easy to operate and controlled by 2 joysticks from its independent control station. The weight is only about 250kg. It is a perfect digging equipment for compacted tractors, such as Kubota BX1880, Kubota BX2380, Kubota BX2680, Iseki TM3245, Iseki 3265 tractors.


Specification of AIEMERY MINI BACKHOE BK145

Backhoe Model

BK145

A

Raise height

2300mm

B

Loading Height

1600mm

C

Digging Depth

1450mm

D

Support   foot Height

400mm

E

Reach   from center line of Swing Pivot

2200mm


Weight

250kg


PTO Speed

540rpm


Horsepower

10-40HP


Hydraulic pressure

16MPa


Bucket (standard)

10”


Bucket (Option)

12”


Valve (Standard)

CN valve


Valve (Option)

Italy valve

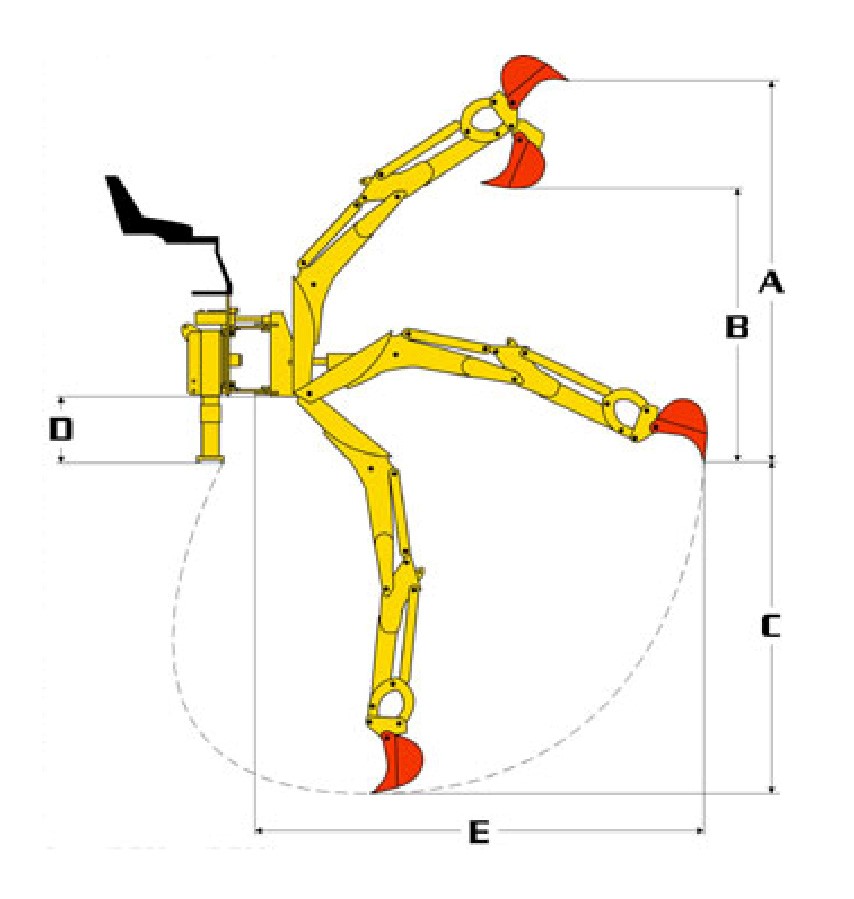

Mini bakhoe BK145 specification

Features of AIEMERY MINI BACKHOE BK145

  • CNC laser cutting of the whole machine and components can achieve excellent quality control, and has a perfect alignment effect, thereby maximizing the service life of oil cylinders and bearings etc.

  • 3 point hitch, category 1 and 2;

  • PTO driven hyraulic pump with gearbox for 540RPM;

  • The left and right supporting feet can be controlled to rise or fall separately or at the same time as required;

  • The boom can swing 180° left and right;

  • Thick and durable high-quality powder spray paint;

  • Adjustable tilt seat.


Uses of AIEMERY MINI BACKHOE BK145

Landscaping and Gardening

Mini backhoes are ideal for landscaping and gardening projects, such as digging ponds, installing irrigation systems, and leveling uneven ground. They can also be used to remove trees, stumps, and rocks.


Construction and Excavation

Mini backhoes are commonly used in construction and excavation projects, such as digging foundations, trenches, and footings. They can also be used to remove asphalt, concrete, and other materials.


Farming and Agriculture

Mini backhoes are useful machines in farming and agriculture, such as digging trenches for irrigation systems, installing fence posts, and moving manure. They can also be used for landscaping and maintaining pastures.


Snow Removal and Demolition

Mini backhoes are also useful for snow removal and demolition projects, such as clearing driveways, sidewalks, and parking lots. They can also be used to demolish small structures, such as sheds and garages.


Maintenance of Mini Backhoes

To ensure the longevity and optimal performance of your mini backhoe, it is important to perform regular maintenance checks and inspections. This includes checking the fluids, lubricating the moving parts, and cleaning the machine after use. It is also important to store the machine in a dry and secure location when not in use.


OPTIONAL

  • 12" bucket

  • 14" bucket

  • Italy valve


Download the AIEMERY MINI BACKHOE BK145 catalogue

backhoe catalogue.pdf
