BK215 tractor backhoe or attachment exacvator is designed for universal medium tractors from 25 to 50hp category Ⅰ/Ⅱ linkage.
It is easy to operate and controlled by 2 joysticks from its independent control station. BK 215 tractor backhoe attachment is an affordable and high quality alternative to a mini excavator, designed for medium to heavy duty performance and uses a very powerful hydraulic system creating a great digging force.
If your tractor do not have the hydraulic outlet, you could choose the BK215 tractor backhoe to have their own hydraulic tank and pump.
Thanks to its compact transportation size, the backhoe also could could be stay mounted to your tractor when you drive on public road, as it does not cover any lights and hydraulic stabilizers.

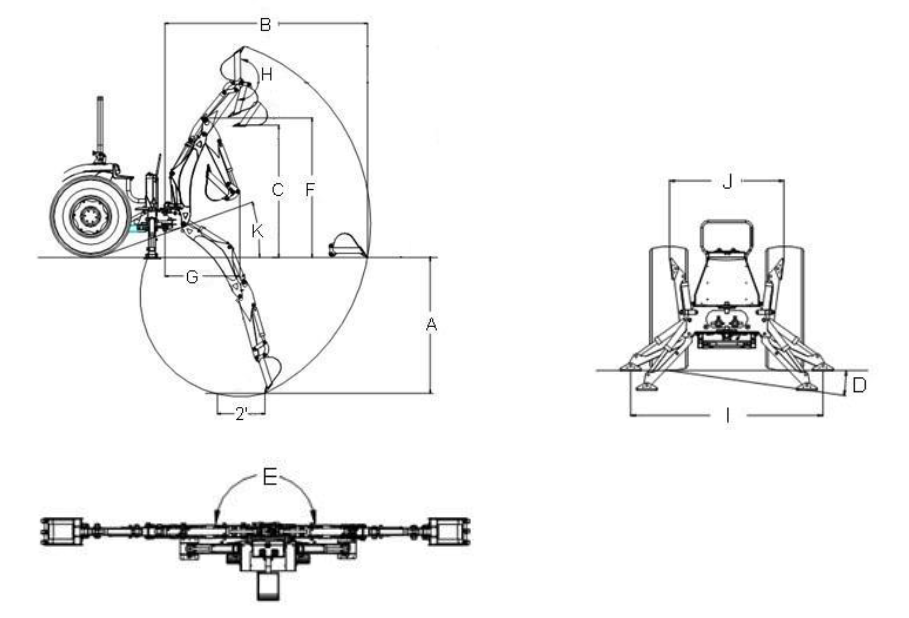

Backhoe Model | BK215 | ||
A | Digging Depth (two foot flat bottom) | 2200mm | 86.6” |
B | Reach from center line of Swing Pivot | 3200mm | 126” |
C | Loading Height | 1850mm | 72.8” |
D | Maximum Leveling Angle | 10° | 10° |
E | Swing Arc | 180° | 180° |
F | Transport Height (maximum) | 2180mm | 85.8” |
G | Transport Overhang | 1230mm | 48.4” |
H | Bucket Rotation | 180° | 180° |
I | Stabilizer Spread (down position) | 2110mm | 83” |
J | Stabilizer Spread (up position) | 1350mm | 53” |
K | Angle of Departure | 21° | 21° |
Shipping Weight (without bucket) | 415kg | 916(lbs) | |
Bucket Digging Force | 1175kg | 2592(lbs) | |
Dipperstick Digging Force | 895kg | 1975(lbs) | |
Operating Pressure | 160bar | 2320psi | |
Using a tractor backhoe requires some skill and experience, but with practice, anyone can learn to operate one safely and effectively. Before using your machine, it's important to read the operator's manual and receive proper training.
To use a tractor backhoe, start by positioning the machine in the area where you need to dig. Lower the stabilizer legs to provide a stable base, then use the joystick to control the digging arm and bucket.
As you dig, be sure to keep an eye out for any potential hazards, such as underground utilities or unstable soil. Use caution when operating the machine near people or other equipment.
Using a tractor backhoe can be dangerous if proper safety precautions are not taken. Here are some important safety tips to keep in mind:
Always wear proper protective gear, including a hard hat, safety glasses, and sturdy work boots.
Never operate the machine without first receiving proper training.
Keep bystanders and other equipment clear of the working area.
Never use the machine to lift people or animals.
Always use the stabilizer legs to provide a stable base.
Avoid digging too close to walls, fences, or other structures.
CNC laser cutting of the whole machine and components can achieve excellent quality control, and has a perfect alignment effect, thereby maximizing the service life of oil cylinders and bearings etc.
3 point hitch, category 1 and 2;
PTO driven hyraulic pump with gearbox for 540RPM for option;
The left and right supporting feet can be controlled to rise or fall separately or at the same time as required;
The boom can swing 180° left and right;
Thick and durable high-quality powder spray paint;
Adjustable tilt seat.
