A tractor backhoe is utilized for excavating and digging tasks, such as creating holes, trenches, or foundations. Typically mounted on the rear of a tractor, it consists of a digging bucket, a boom, and a hydraulic system.
The digging bucket is a robust scoop designed to handle heavy-duty work, enabling the removal of soil, rocks, and other materials from the ground. It is attached to a long arm called the boom, which extends from the back of the tractor.
By employing a hydraulic system, the operator can easily control the movement of the boom and bucket, facilitating precise and controlled digging. Backhoes find widespread use in construction, landscaping, and agriculture, as they streamline tasks and reduce the need for manual excavation or digging, ultimately saving time and labor.
| |||

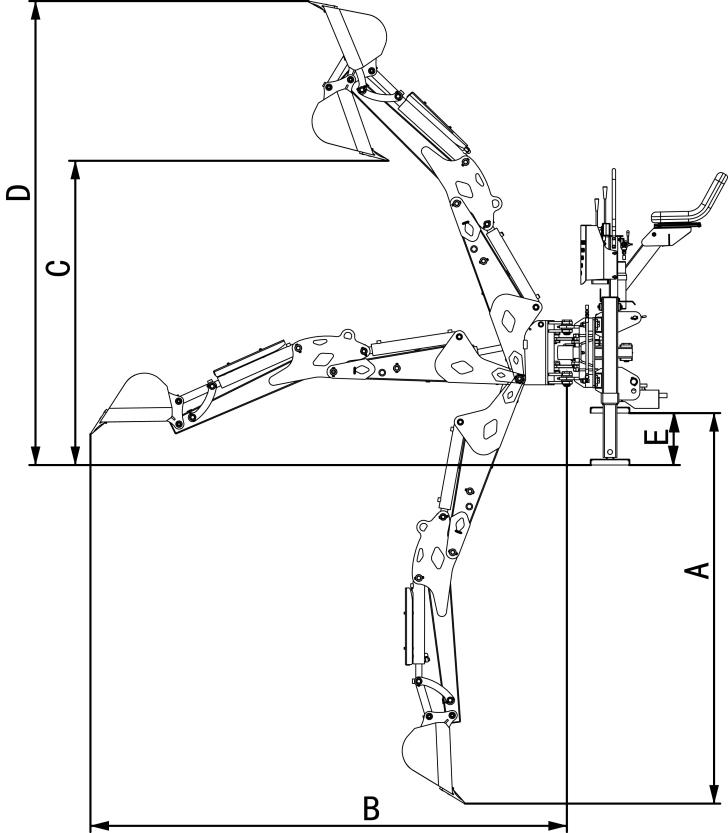

Backhoe Model | BH220 | ||
A | Digging Depth | 2200mm | 86.61” |
B | Maximum working radius | 2730mm | 107.48” |
C | Loading Height | 1670mm | 65.75” |
D | Maximum height | 2650mm | 104.33” |
E | Height of support leg | 300mm | 11.81” |
Rotation angle | 180° | 180° | |
Frame moving distance | 840mm | 33.07” | |
Moving Frame width | 1400mm | 55.12” | |
Side shift Lock | hydraulic (4 cylinders) | ||
Digging Force | 800kg | ||
Weight | 467kg | 467kg | |
Oil tank | 19L | 19L | |
Operating Pressure | 160bar | 2320psi | |
Standard bucket | 305mm | 12” | |
Horse power | 35-60hp | 25.7-44.1KW | |
The utilization of a tractor backhoe offers numerous benefits to operators and construction professionals. Firstly, it provides enhanced efficiency by combining multiple functions into a single machine, reducing the need for additional equipment. Moreover, its versatility allows for seamless transitioning between tasks, increasing productivity on the job site. Additionally, the compact size of some models enables easy maneuverability in tight spaces, making it an ideal choice for urban construction projects.
Selecting the right tractor backhoe requires careful consideration of several factors. These include the intended application, required horsepower, digging depth and reach, loader capacity, backhoe controls, operator comfort, and maintenance requirements. Evaluating these factors and consulting with experts can help ensure the right machine is chosen for the job.
Proper maintenance and care are crucial to ensure the longevity and optimal performance of a tractor backhoe. Regular inspections, lubrication, and fluid checks are essential. Additionally, following manufacturer-recommended service intervals, cleaning the machine after use, and storing it in a suitable environment contribute to its longevity.
Operating a tractor backhoe requires adherence to strict safety protocols. Some essential safety tips include wearing appropriate personal protective equipment, familiarizing oneself with the machine's controls and features, conducting pre-operation inspections, avoiding hazardous areas, and practicing proper load and trenching procedures. By prioritizing safety, accidents and injuries can be significantly reduced.
