BH260 tractor sideshifting backhoe or attachment exacvator is designed for universal tractors from 55 to 90hp category Ⅰ/Ⅱ linkage. Typically mounted on the rear of a tractor, it consists of a digging bucket, a boom, and a hydraulic system. The digging arm, or boom, is usually mounted on a pivot and can be raised, lowered, and extended to reach the desired digging depth. The bucket, which is attached to the end of the digging arm, can be used to scoop up dirt, rocks, and other materials. Tractor backhoes are commonly used in construction, landscaping, and agriculture to dig foundations, trenches, and holes, move soil and other materials, and perform other tasks that require heavy lifting and digging capabilities.
It is easy to operate and controlled by 4 joysticks from its independent control station. BH260 tractor backhoe attachment is an affordable and high quality alternative to a mini excavator, designed for medium to heavy duty performance and uses a very powerful hydraulic system creating a great digging force.
If your tractor do not have the hydraulic outlet, you could choose the BH260 tractor backhoe to have their own hydraulic tank and pump.
Thanks to its compact transportation size, the backhoe also could could be stay mounted to your tractor when you drive on public road, as it does not cover any lights and hydraulic stabilizers.
| |||
| |||

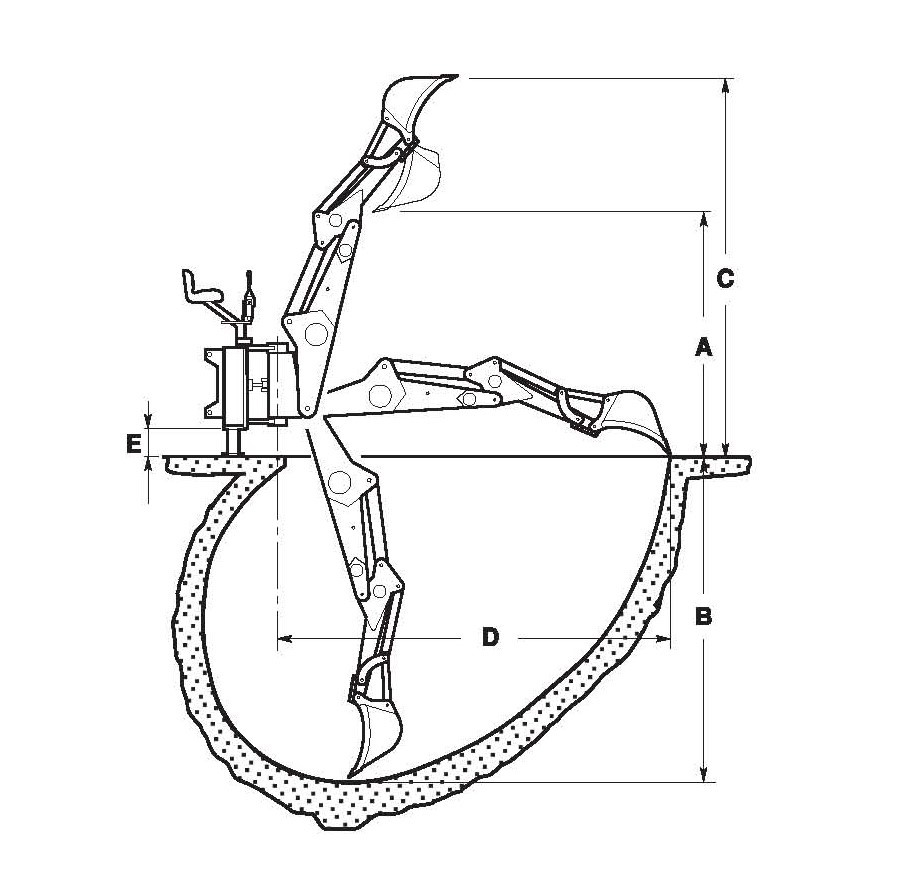

Backhoe Model | BH260 | ||
A | Transport Height | 1880mm | 70.8” |
B | Digging Depth | 2600mm | 102.3” |
C | Maximum height | 2850mm | 112.2” |
D | Maximum working radius | 2800mm | 110.2” |
E | Height of support leg | 310mm | 12.2” |

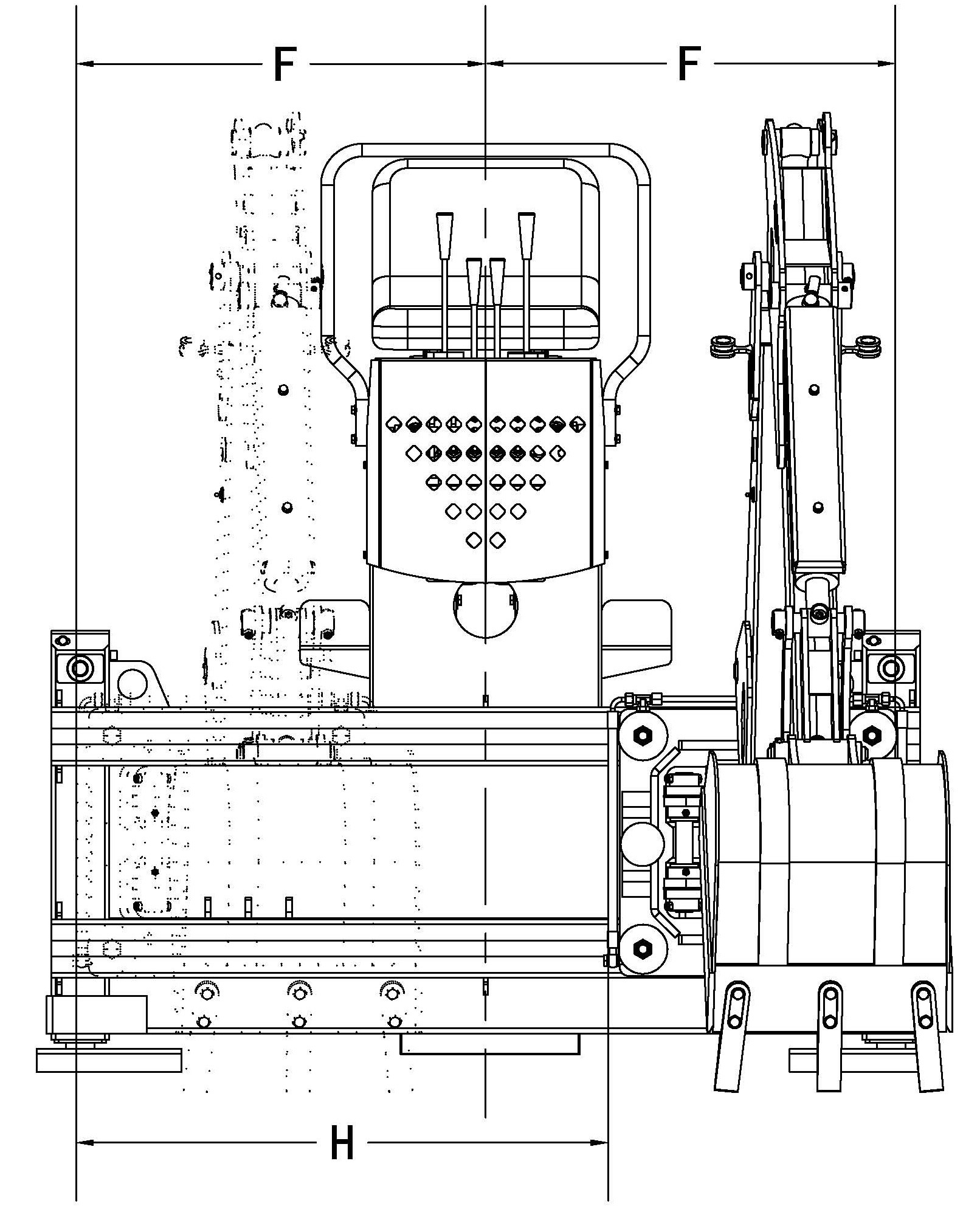

F | Offset distance from Middle line | 706mm | 27.8” |

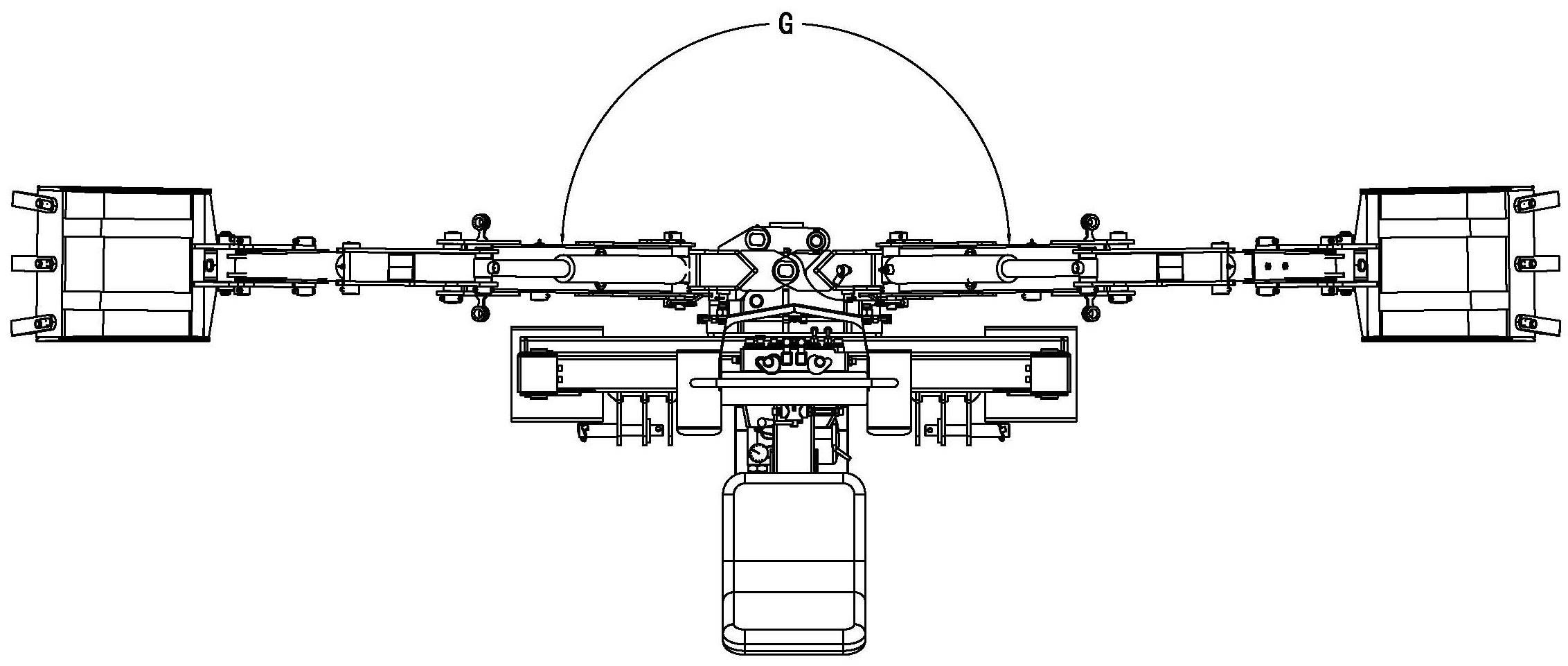

G | Rotation angle | 180° | 180° |
H | Frame moving distance | 920mm | 36.2” |
Moving Frame width | 1500mm | 59” | |
Weight | 580kg | 580kg | |
Oil tank | 35L | 35L | |
Operating Pressure | 160bar | 2320psi | |
Standard bucket | 400mm | 16” | |
Sideshifting backhoe with hydraulic locking
Independent hydrauilc system, driven by PTO. (oil tank, gearpump)
CNC laser cutting of the whole machine and components can achieve excellent quality control, and has a perfect alignment effect, thereby maximizing the service life of oil cylinders and bearings etc.
3 point hitch, category 1 and 2;
PTO driven hyraulic pump with gearbox for 540RPM for option;
The left and right supporting feet can be controlled to rise or fall separately or at the same time as required;
The boom can swing 180° left and right;
Thick and durable high-quality powder spray paint;
Adjustable tilt seat.
