Tracotor backhoe BH170

  • BH170

  • AIEMERY

  • 1700cm

  • 25-35HP

Availability:
Quantity:

Tractor backhoes are versatile machines used in various industries such as construction, agriculture, and landscaping. They are powerful and efficient equipment that can perform multiple tasks, making them an essential tool for many professionals.

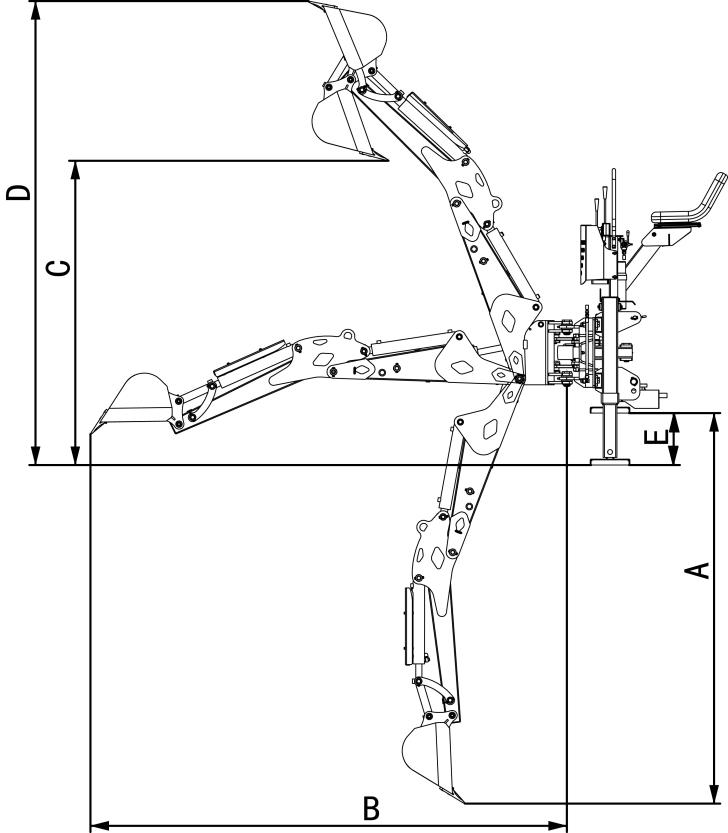

Specification of AIEMERY Tractor Backhoe BH170


Backhoe Model

BH170

A

Digging Depth

1700mm

66.93”

B

Maximum working radius

2410mm

94.88”

C

Loading Height

1510mm

59.45”

D

Maximum height

2380mm

93.7”

E

Height of support leg

270mm

10.63”


Rotation angle

180°

180°


Frame moving distance

560mm

22.05”


Moving Frame width

1100mm

43.31”


Side shift Lock

Mechanic (hydraulic is option)


Digging Force

600kg

600kg


Weight

374kg

374kg


Oil tank

15L

15L


Operating Pressure

160bar

2320psi


Standard bucket

254mm

10”


Horse power

25-35hp

18.4-25.7KW


How a Tractor Backhoe Works

Tractor backhoes have three main components: a tractor, a loader, and a backhoe. The tractor provides the power and traction needed to move the machine and operate the other two components. The loader is located at the front of the tractor and is used to move materials, such as dirt or rocks. The backhoe is located at the back of the tractor and is used to dig and excavate.


To operate a tractor backhoe, the operator first drives the tractor to the work area. The loader is then used to move materials from one location to another. Once the materials are moved, the operator can switch to the backhoe and begin digging. The backhoe is operated using hydraulic controls, which allow the operator to control the movement and digging depth.


Types of Tractor Backhoes

There are three main types of tractor backhoes: compact, standard, and industrial. Compact tractor backhoes are smaller and designed for residential or small-scale projects. Standard tractor backhoes are larger and more powerful, making them suitable for medium to large-scale projects. Industrial tractor backhoes are the largest and most powerful, capable of handling heavy-duty tasks.


Applications of Tractor Backhoes

Tractor backhoes are used in various industries, including construction, agriculture, and landscaping. In construction, they are used for digging foundations, trenches, and holes, as well as for demolition work. In agriculture, they are used for digging irrigation ditches, planting crops, and harvesting. In landscaping, they are used for grading, digging ponds, and removing trees.


Advantages of Using a Tractor Backhoe

Tractor backhoes offer many advantages, including versatility, efficiency, and cost-effectiveness. They can perform multiple tasks, reducing the need for multiple pieces of equipment. They are also efficient, as they can complete tasks quickly and easily. Additionally, they are cost-effective, as they eliminate the need for manual labor.


Factors to Consider When Choosing a Tractor Backhoe

When choosing a tractor backhoe, it's important to consider factors such as size, power, attachments, and brand. Size refers to the overall dimensions of the machine, which can affect its maneuverability and the size of the tasks it can handle. Power refers to the engine horsepower, which determines the machine's ability to dig and lift heavy loads. Attachments are additional tools that can be added to the machine, such as augers or hammers, to increase its functionality. Finally, brand reputation and customer support should be considered when making a purchase.


Maintenance and Safety of Tractor Backhoes

To keep a tractor backhoe in top condition, regular maintenance is required. This includes checking and replacing fluids, inspecting hydraulic hoses and connections, and lubricating moving parts. Safety precautions should also be taken when operating a tractor backhoe, such as wearing appropriate protective gear and following manufacturer's guidelines for use.
