Flail Mower FL

Flail Mower is ideal for compact tractor grass cutting, Aiemery Agri-machinery is one of the best flail mower manufacturer and factory in China.
  • FL

  • AIEMERY

  • 20, 30, 40

Availability:
Quantity:

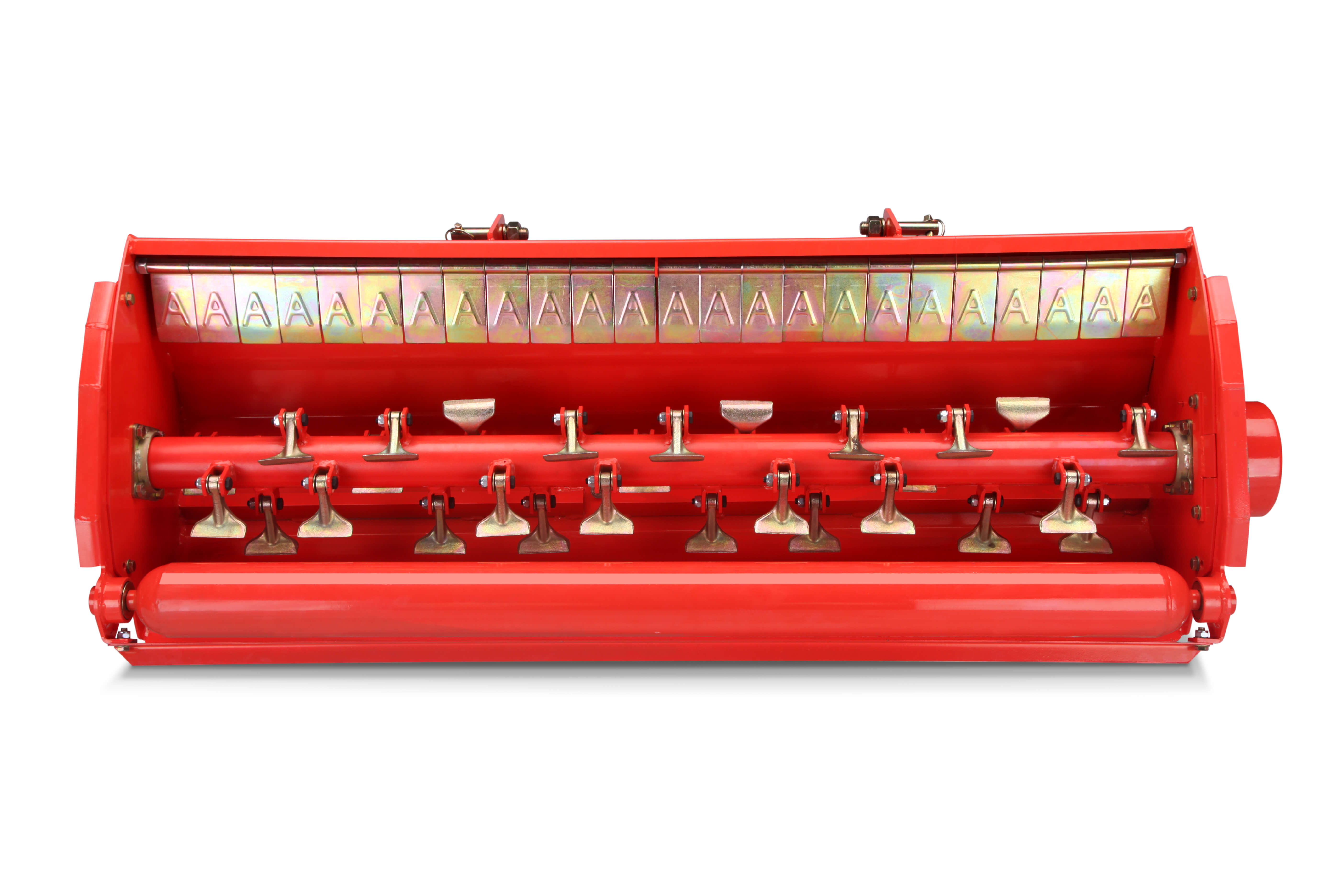

Flail Mower FL1 (4)Flail Mower FL

The New Design FL is a PTO-mounted agricultural equipment designed to handle dense grass and scrub that cannot be effectively managed by a regular lawn mower. It features a sturdy construction and is known as the BladeRunner, making it the most robust mowing attachment available. The Flail Mower is capable of tackling challenging mowing conditions with its vertically rotating "Hammer" blades. These blades pulverize the plant material into a fine pulp, ensuring an even distribution across the mowing width.


Specification of Flail Mower

MODEL

FL110

FL130

FL150

FL170

Dimensions(mm)

1300x710x720

1500x710x720

1700x710x720

1900x710x720

Structure Weight (kg)

165

180

200

220

Cutting width (cm)

106

126

146

166

Cutting height (mm)

0-60mm

0-60mm

0-60mm

0-60mm

Rotor diameter (mm)

76

76

76

76

Hammer Number

20

24

28

32

PTO Turing speed(rpm)

540

540

540

540

PTO shaft size(mm)

T4-800

T4-800

T4-800

T4-800

Power Required (hp)

20-30

25-35

30-40

30-40

Packing Size (cm)

1300x720x570

1500x720x570

1700x720x570

1900x720x570


Features

1.Adjustable cutting height

The cutting height of the Flail Mower can often be adjusted, allowing for precise control over the desired grass or scrub length.The roller can be set at four different cutting heights, from 1.3 cm to 12.7 cm (1/2 in. to 5 in.) The tractor's 3-point hitch upper link is used to regulate the cutting height between these positions.


2.Power take-off (PTO) drive shaft and gearbox

All mowers use a heavy-duty gearbox with a continuous rating of 18-40 hp.

It is designed to be mounted to the power take-off (PTO) of a tractor or other agricultural machinery, ensuring efficient power transfer.

The power is transmitted through fully shielded, telescoping drive shafts with quick-attach and detach characteristics for easy hookup.


3.hammer rotor provides uniform distribution of pulverized material

Rotor revolves at 1850 rpm to produce a 152.9-km/h (95-mph) blade-tip speed for a clean cut.

Hammers are arranged on the rotor to provide uniform distribution of material across the full cutting width.

Hammers pivot at their mounting points to minimize damage if an obstruction is hit.

Equipped with vertically rotating "Hammer" blades, the mower pulverizes plant material into a fine pulp. This ensures thorough cutting and efficient mulching of the mowed vegetation.


4.Tractor hookup

The 25A hitch is now compatible with any Category 1 3-point hitch (with or without the iMatch™ Quick-Coupler system).The Flail Mower's design and cutting mechanism result in efficient operation, reducing clogging and increasing productivity. The finely shredded plant material is evenly spread across the mowing width, resulting in a consistent and visually appealing appearance after mowing.


5.Gearbox

All Aiemery flail mowers feature this rugged gearbox. It has a continuous rugged gearbox. It has a continuous 18-40hp rating.  Plus, it comes with a 12 months warranty.


6.Heavy-Duty Construction

The mower is built with durability in mind, capable of withstanding tough operating conditions. It is capable of mowing in challenging terrain, such as uneven or sloped surfaces, making it ideal for agricultural fields, orchards, roadsides, and other demanding environments.

The Flail Mower is effective in handling heavier grass and scrub that regular lawn mowers struggle with, making it suitable for various terrains and vegetation types.



Benefits of Flail Mower

Versatility: Flail mowers are highly versatile and can effectively cut and mulch a wide range of vegetation types, including heavy grass, scrub, weeds, and even small trees. This versatility makes them suitable for various applications and terrains.


Superior Cutting Power: The hammer blades of flail mowers are designed to deliver powerful cutting action, allowing them to tackle thick and challenging vegetation with ease. They can handle dense growth that regular mowers may struggle to cut through.


Improved Mulching: Flail mowers excel at mulching the mowed vegetation into fine particles. This finely shredded material decomposes quickly, returning nutrients to the soil and promoting healthy regrowth. The even distribution of mulch also enhances the aesthetics of the mowed area.


Enhanced Safety: Flail mowers are designed with safety in mind. They typically feature protective covers and guards that prevent debris from being thrown during operation, reducing the risk of injury to the operator and bystanders.


Efficiency and Productivity: With their robust construction and powerful cutting mechanism, flail mowers offer efficient and productive operation. They can cover large areas quickly, reducing the time and effort required for mowing tasks.


Adaptability to Various Terrains: Flail mowers can handle uneven or rough terrain, including slopes and ditches, thanks to their sturdy design and flexible cutting head. This adaptability makes them suitable for agricultural fields, orchards, roadside maintenance, and other challenging landscapes.


Reduced Clogging: The design of flail mowers minimizes the likelihood of clogging, even when working in dense vegetation. The hammer blades are less prone to entanglement and blockage compared to traditional rotary blades, ensuring uninterrupted operation.


Longevity and Durability: Flail mowers are built to withstand demanding conditions and heavy use. They are constructed with high-quality materials and components, ensuring longevity and reducing maintenance and replacement costs over time.


Easy Maintenance: Flail mowers generally have accessible parts and straightforward maintenance procedures. Blade replacement and routine maintenance tasks are often simple to perform, keeping downtime to a minimum.


Environmentally Friendly: The mulching action of flail mowers promotes a more sustainable approach to vegetation management. By mulching the mowed material into fine particles, there is less need for disposal or burning, reducing waste and minimizing environmental impact.
