Rotary tiller TL

Rotary tiller TL offered by China manufacturer Aiemery Agri-machinery. Buy directly with low price and high quality.
  • TL

  • Aiemery

  • 15,20,30

Availability:
Quantity:

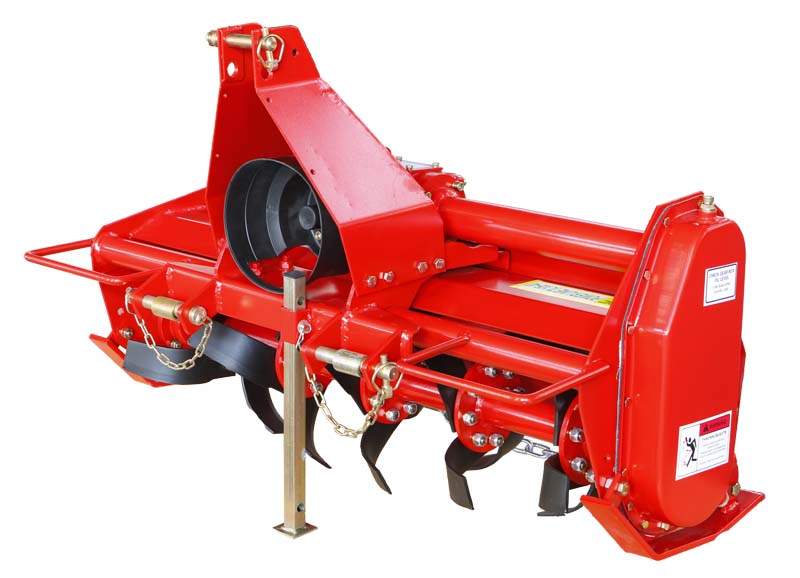

TL tiller

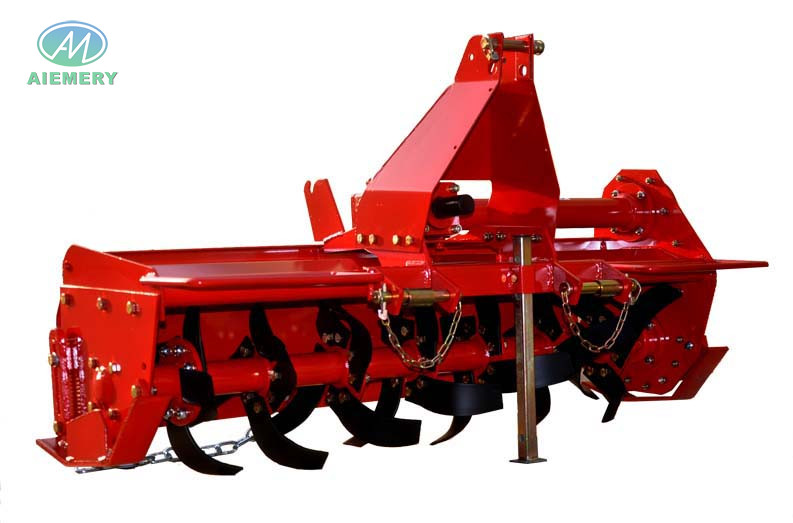

Rotary tiller TL

New Design Light rotary tiller is ideal for small tractor for garden work .

This tiller is cheap and good quality , very good work for home job . This is European design , and with CE certificated , so it is very safe .

MODEL

TL-95

TL-105

TL-115

TL-125

TL-135

Dimensions (mm)

1150×800×750

1250×800×750

1350×800×750

1450×800×750

1550×800×750

Structure Weight (kg)

170

185

200

240

240

Tilling width (cm)

90

100

110

120

130

Tilling depth (mm)

90

90

90

90

90

PTO rotation speed (rpm)

540

540

540

540

540

PTO shaft size(mm)

6×8×700

6×8×700

6×8×700

6×8×700

6×8×700

Power Required (hp)

12-20

15-22

15-22

18-22

18-22

Packing Size (cm)

110x75x50

120x75x50

130x75x50

140x75x50

150x75x50


Features

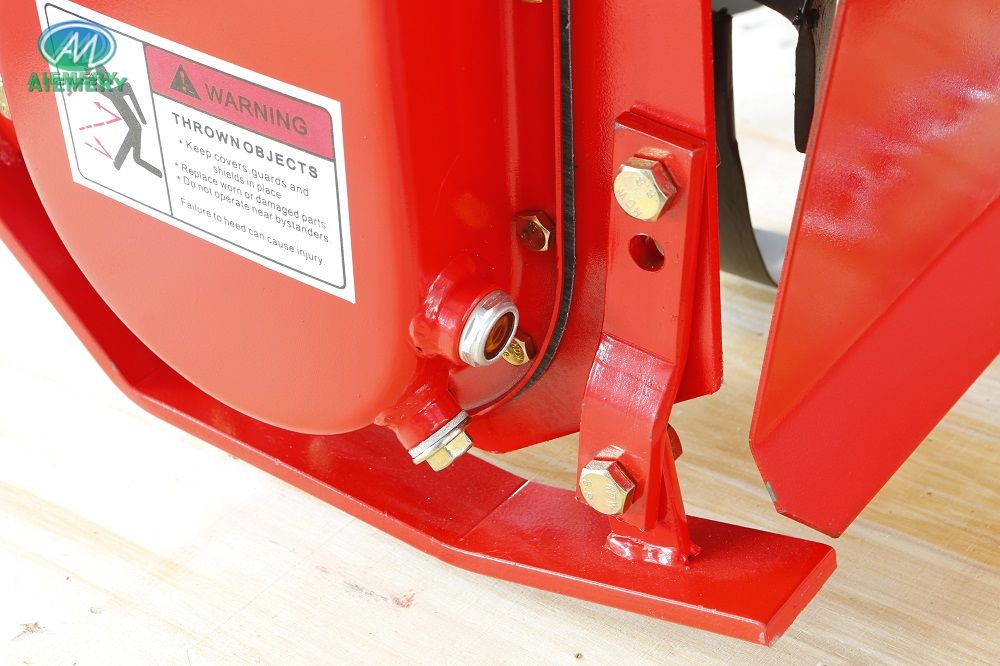

1.Adjustable cutting height

You can change adjust plate to get a depth you need


2.Power take-off (PTO) drive shaft and gearbox

All tiller use PTO for give power, tractor power from 15-35hp .


The power is transmitted through fully shielded, telescoping drive shafts with quick-attach and detach characteristics for easy hookup.


3.Strong blade

TL rotary tiller use good quality material for work , all the blades with paint for reduce rust .


4.Tractor hookup

The 25A hitch is now compatible with any Category 1 3-point hitch (with or without the iMatch™ Quick-Coupler system).


5.Gearbox

Use cast iron gearbox for strong work , and Provide 12 months warranty!


Components of a rotary tiller

A rotary tiller comprises several components that work together to prepare the soil for planting. These include:


  • Engine: The engine powers the tiller and drives the rotating blades or tines.

  • Tines: The tines are the rotating blades that break up the soil and mix in organic matter.

  • Transmission: The transmission controls the speed and direction of the tines.

  • Wheels: The wheels allow the operator to move the tiller forward and backward.

  • Depth control: The depth control mechanism allows the operator to adjust the depth of the tines.



How to use a rotary tiller

Using a rotary tiller requires skill and experience. Here are the steps to follow when using a rotary tiller:


Step 1: Prepare the soil

Remove any large rocks, roots or debris from the soil to avoid damaging the tiller.


Step 2: Adjust the depth control

Set the depth control to the desired depth. It is recommended to till the soil to a depth of 6 to 8 inches.


Step 3: Start the engine

Follow the manufacturer's instructions to start the engine.


Step 4: Till the soil

Move the tiller forward at a slow and steady pace. Allow the tines to break up the soil and mix in organic matter.


Step 5: Finish up

Once you have tilled the entire area, turn off the engine and clean the tiller.


Best practices for rotary tiller maintenance

Maintaining a rotary tiller is crucial to ensure it remains in good conditionand operates efficiently. Here are some tips to keep your rotary tiller in good working condition:


  • Regular cleaning: After each use, clean the tiller thoroughly to remove any dirt or debris.

  • Oil and filter changes: Change the oil and air filter regularly to keep the engine running smoothly.

  • Belt replacement: Check the belts regularly for wear and tear and replace them if necessary.

  • Tine maintenance: Inspect the tines for damage or wear and replace them if necessary. Sharpen the tines regularly to maintain their effectiveness.

  • Storage: Store the tiller in a dry place and cover it to protect it from dust and moisture.
