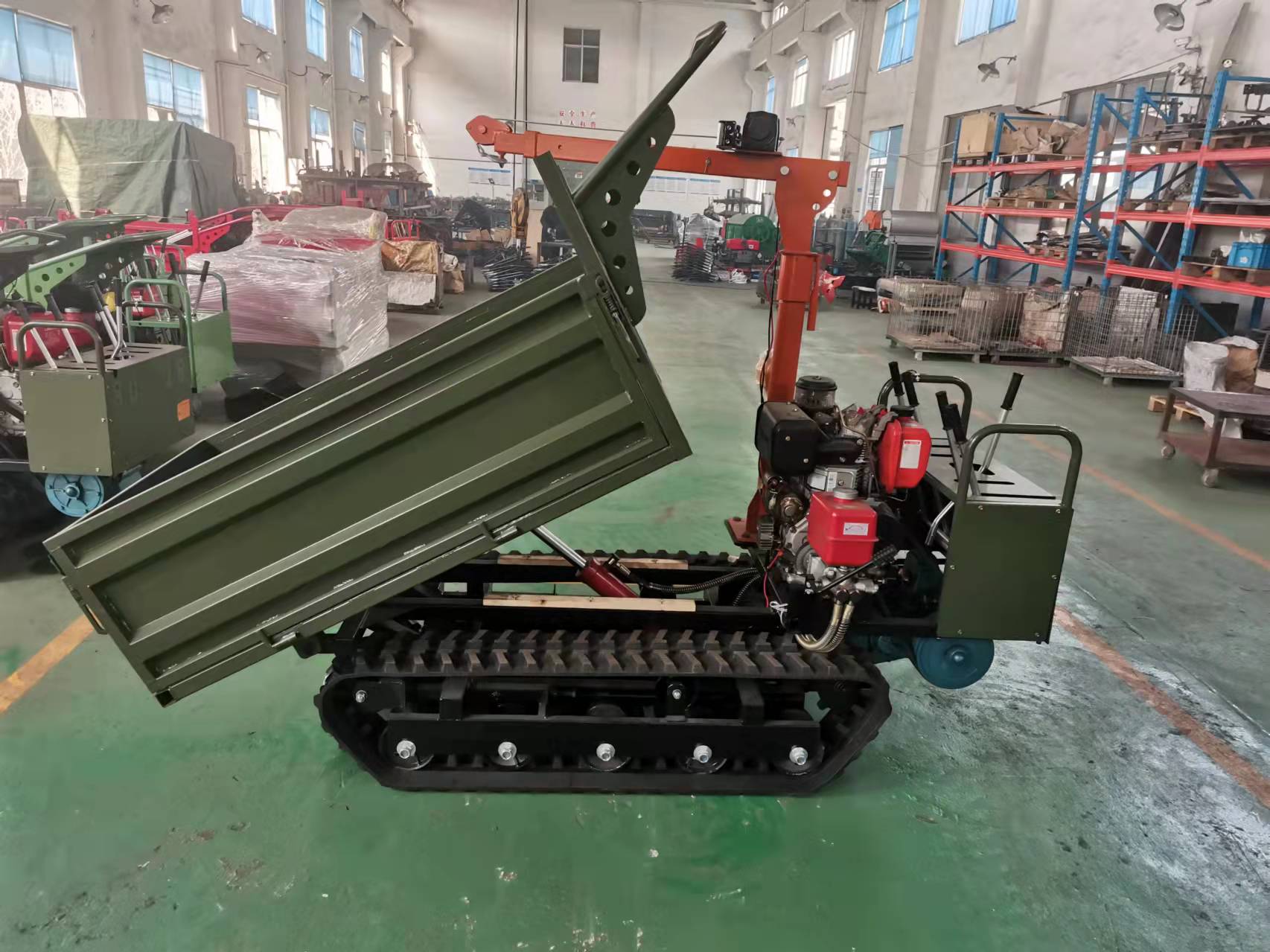

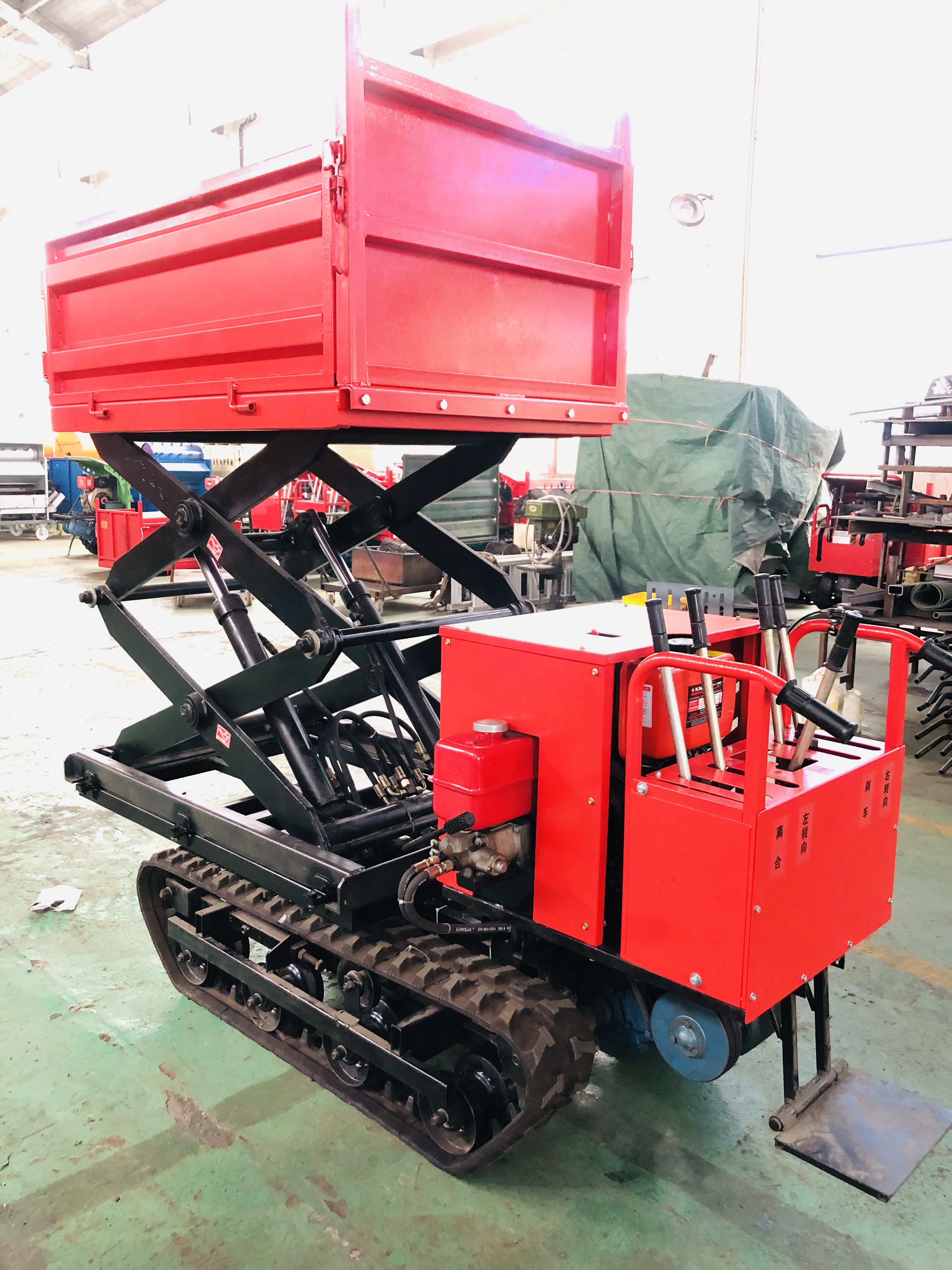

The 7TY series mini crawler dumper or mini tracked dumper from Chinese mini crawler dumper manufacture Changhzou AIEMERY, is the ideal mini dumper solution for materials handing in warehouses, greenhouses and especially in rough or steep terrain. Thanks to its small size and compact body, the mini tracked dumper is every agile and versatile and allows it to fit into tight, narrow spaces, including doorways. Our mini tracked dumpers are very good at transporting materias of building and construction, agricultural, horticultural and landscaping.
| Model | 7YDL-1200 | 7YDL-800 | 7YDL-600 |
| Size L*W*H | 2300*950*1200mm | 2150*950*1170mm | 2100*700*1070mm |
| Cargo box size L*W*H | 1400*950*500mm | 1250*850*500mm | 1250*700*500mm |
| Engine Model | Disel 190 （7.5KW） | Disel 186FS (6.5Kw) | Disel 178FS (4Kw) |
| Gearbox Material | Nodular cast iron 2100 | Nodular cast iron G13 | Nodular cast iron G10 |
| Track Specifications | 230*72*46mm | 180*72*43mm | 180*72*43mm |
| Track Material | Engineering rubber track | Engineering rubber track | Engineering rubber track |
| Material/ supporting wheel size | Steel 6*150 | Steel 3*150 | Steel 3*150 |
| Unloading method | Hydraulic | Hydraulic | Hydraulic |
| Start method | Electric | Electric | Electric |
| Clutch | Pull rod | Pull rod | Pull rod |
| Loading Capacity | 1.2T | 0.8T | 0.6T |
| Net Weight | 0.62T | 0.45T | 0.4T |
| Minimum turning radius | 2.2m | 1m | 1m |
| Gearbox | 3 forward +1 backward | 3 forward +1 backward | 3 forward +1 backward |
| Height of the cargo box from the ground | 500mm | 415mm | 415mm |
| Steering | Tie rod | Tie rod | Tie rod |
| Steering method | Clutch disc | Clutch disc | Clutch disc |
Mini crawler dumpers find applications in a wide range of industries, thanks to their versatility and adaptability.
In construction sites, mini crawler dumpers are used to transport various materials like gravel, sand, and concrete. Their ability to maneuver through tight spaces and deliver materials to precise locations makes them invaluable for projects such as residential or commercial building construction. They are also utilized in landscaping projects to transport soil, plants, and other landscaping materials.
Mini crawler dumpers are well-suited for agricultural applications, aiding in the transportation of crops, fertilizers, and farm equipment. Their compact size allows them to access fields without causing damage to crops or soil. These machines are also used in nurseries and horticulture for moving plants, mulch, and other gardening supplies.
In mining and excavation projects, mini crawler dumpers play a crucial role in transporting extracted materials such as ore, gravel, or rocks. Their ability to navigate through uneven and rough terrains, including mines and quarries, ensures efficient material handling and contributes to increased productivity.
Mini crawler dumpers are also employed in maintenance and repair work, both indoors and outdoors. They are useful for carrying tools, equipment, and supplies to different locations, enabling workers to efficiently complete tasks. Their compact size makes them suitable for maneuvering through narrow hallways, making them a valuable asset in facilities such as hospitals, warehouses, and airports.
