AM Boom Flail Mower

When you have that impossible area to mow let the Aiemery AM80 Boom mounted Flail mower makes it possible. AM Boom Flail Mower is designed to trim those impossible places.  We the the boom mower manufacturers from China
  • AM80

  • AIEMERY

  • 18, 20, 30, 40, 50

Availability:
Quantity:


AM Boom Flail Mower

AM Boom Flail Mower is designed to trim those impossible places. Places like Roadside Brush, Maintaining your Fence Lines, Clearing out that Ditch, Mowing those pesky branches that hang down and scratch the top of your vehicles, Mowing between the sidewalks and roadways, Mowing around the pond, Cleaning along the creek, Clearing over the top of the fence or getting that brush that is over the edge of the embankment. Changzhou Aiemery is a professional boom mower manufacturers from China


Specification sheet for AM Boom Flail mower AM80


Model

Working width(cm)

Blade

NO.

PTO speed

(r/min)

Horse Power Hp

3 point linkage

Hydraulic oil(L)

Weight(kg)

AM60

60

20+10

540

20-60

Ⅰ/Ⅱ

75

395

AM80

80

24+12

540

20-60

Ⅰ/Ⅱ

75

410

AM100

100

32+16

540

20-60

Ⅰ/Ⅱ

75

425

Option

12” bucket

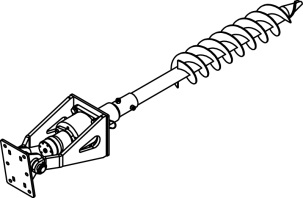

Hole digger

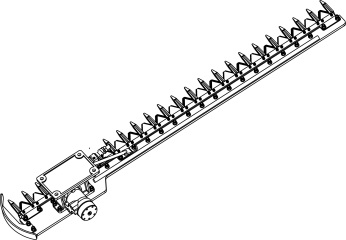

Hedge trimmer

Long arm for trimmer

6”、8”、10”

120、150、180


Features for AM Boom Flail mower AM80

1. Tractor 3-point Hitch Cat. I & II.

2. Independent Self Contained Hydraulic Circuit with High-Efficiency Aluminum Gear Pump.

3. Max. 540 RPM PTO.

4. Hydraulic Valve System Operated by Flexible Cables & Control Unit with Mechanical Levers.

5. High-Strength Framework Pre-Engineered for 3-Point Hitching to Cat. I & 2.

6. Ground knives made of Hardened & Heat Treated Steel.

7. Wear-Resistant Bushings with Lubricating Nipple.

8. Floating Cutting Head.




AM Boom Flail Mower AM80.pdf
